Brief Introduction

The Raymond mill adopts the advanced structure of similar products at home and abroad, and is updated and improved on the basis of Raymond mills in the same industry.

Application--- Calcium carbonate crushing processing, gypsum powder processing, power plant desulfurization, non-metallic mineral pulverization, coal powder preparation, etc.

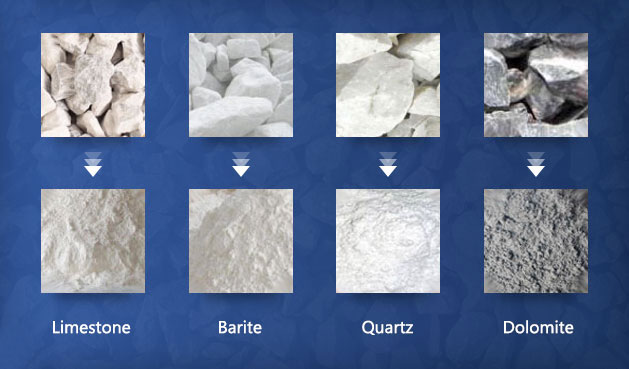

Processing Materials

Raymond mill is widely used in high-fine powder processing of more than 280 kinds of non-metallic ore materials with a Mohs hardness of not more than 9.3 and non-flammable and explosive mineral, chemical and construction industries with a humidity of 6% or less, the particle size of the finished product can be adjusted arbitrarily within the range of 80-800 mesh.

raymond-mill

More Grinding Equipment

Technical Specifications

Raymond Mill

HGM German Version Raymond Mill

HLM Series Vertical Grinding Machine

Model 4525 4119
Feeding Size(mm) ≤30 ≤25
Output Size(mm) 0.173-0.044 0.173-0.044
Shift Output of Different Material Fineness(t) 16-176 8-78
Rotation Speed of Central Shaft(r/min) 82 105
Ring Diameter(mm) 1770 1400
Roller Diameter(mm) 450 410
Roller Height(mm) 250 190
Main Motor(kw) Y315M-4-132 Y280S-4-75
Fan Motor Y315M-4-132 Y280S-4-75
Analyzer Motor YCT250-4A-18.5 YCT200-4B-7.5
Model Output Size
(mm)		 Shift output of different
materia fineness(t)
4525 0.173-0.044 16-176
4119 0.173-0.044 8-78
Model Feeding size
(mm)		 Finished product size
(mm)		 Capacity
(t/h)		 Grinding ring diameter
(mm)		 Number of grinding roller Power of main machine
(kW)		 Blower power
(kW)		 Analyzer power
(kW)		 Transmission type
HGM88 <25 0.25-0.015 0.4-5 908 3 22 22 5.5 V-belt transmission
HGM95 <25 0.25-0.015 0.6-7 1006 3 37 37 7.5
HGM120 <25 0.25-0.015 1.2-15 1280 3 55 75 15 Reducer transmission
HGM130 <25 0.25-0.038 1.6-21 1400 4 75 90 18.5
HGM138 <25 0.25-0.038 2-25 1510 4 90 110 22
HGM160 <30 0.25-0.038 2.7-28 1770 5 132 160 22/30
HGM175 <35 0.25-0.038 3-35 1900 5 185 200 30
HGM190 <40 0.25-0.038 5-40 2040 4 250/280 250/280 45/55

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Capacity
(t/h)		 Power of main machine
(kW)
HGM88 0.4-5 22
HGM95 0.6-7 37
HGM120 1.2-15 55
HGM130 1.6-21 75
HGM138 2-25 90
HGM160 2.7-28 132
HGM175 3-35 185
HGM190 5-40 250/280

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Specifications Capacity(t/h) The finished product fineness The raw material moisture The finished product moisture Main motor power(kW)
HLM1300K 10-40 0.84-0.37mm (20-400 mesh) ≤15% ≤1% 200
HLM1500K 13-50 280
HLM1700K 18-70 400
HLM1900K 20-85 500
HLM2200K 35-135 800-900
HLM2400K 40-160 900-1120
HLM2800K 50-200 1120-1250
HLM3400K 70-260 1800-2000
HLM3700K 90-320 2500-2800

Note: The grindability (Bond) index of raw materials is less than or equal to 13kw/t

Specifications Capacity(t/h) Main motor power(kW)
HLM1300K 10-40 200
HLM1500K 13-50 280
HLM1700K 18-70 400
HLM1900K 20-85 500
HLM2200K 35-135 800-900
HLM2400K 40-160 900-1120
HLM2800K 50-200 1120-1250
HLM3400K 70-260 1800-2000
HLM3700K 90-320 2500-2800

Note: The grindability (Bond) index of raw materials is less than or equal to 13kw/t

Advantages

Equipment Composition

The whole structure of Raymond mill is composed of main machine, analyzer, pipeline device, blower, cyclone separator, jaw crusher, bucket elevator, electromagnetic vibrating feeder, electric control motor, etc. Among them, the main engine of Raymond mill is composed of frame, inlet volute, blade, grinding roller, grinding ring, cover and motor..
