Powder Production Line

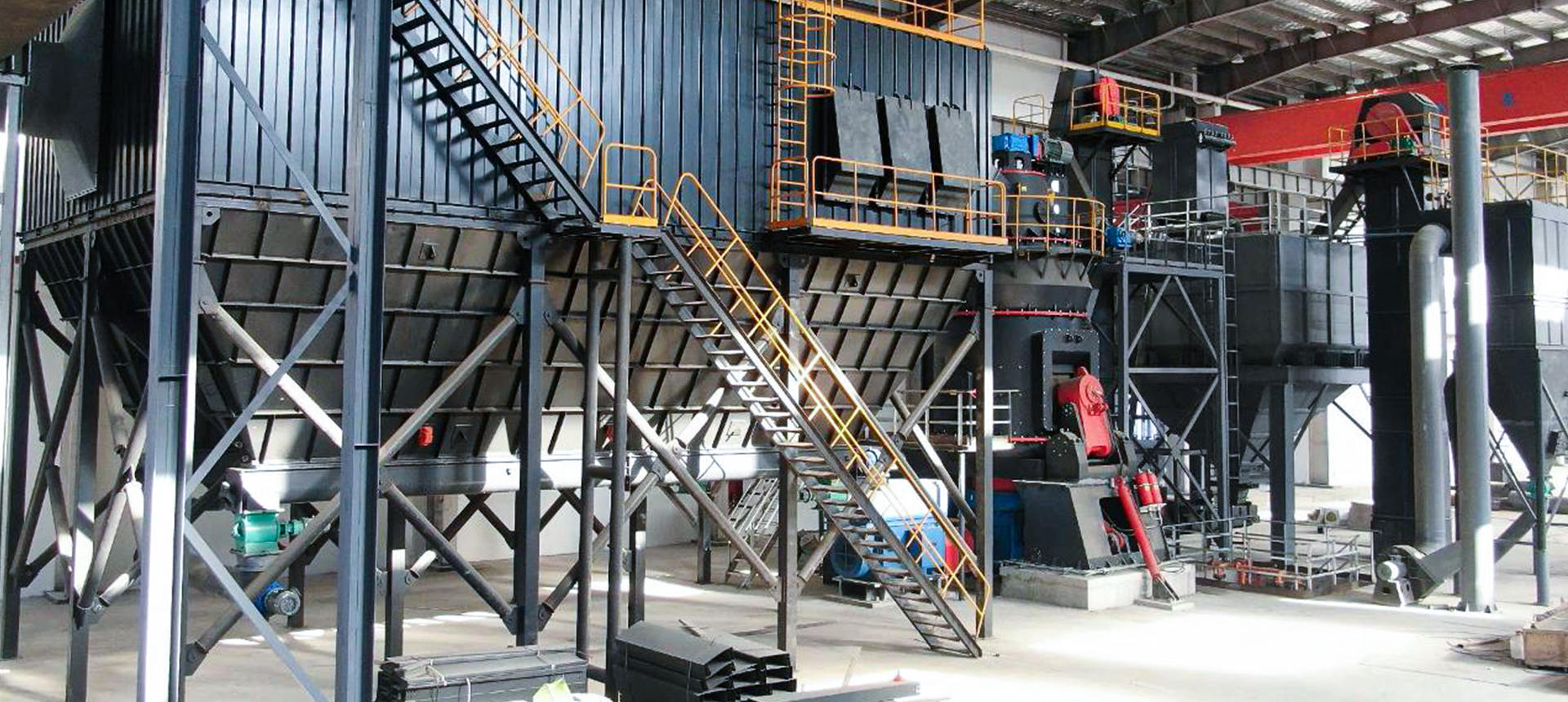

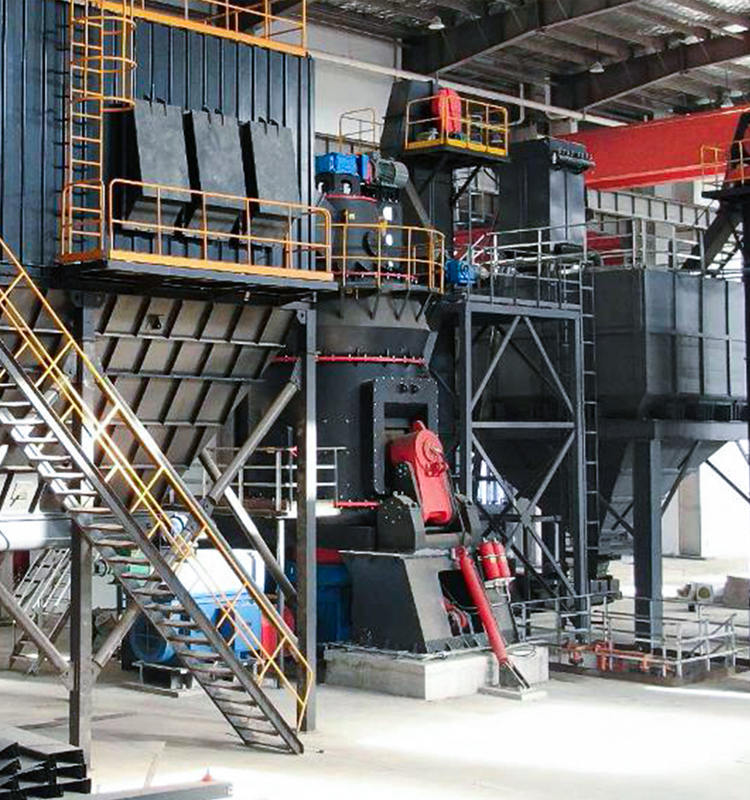

Powder Production Line Process Flow

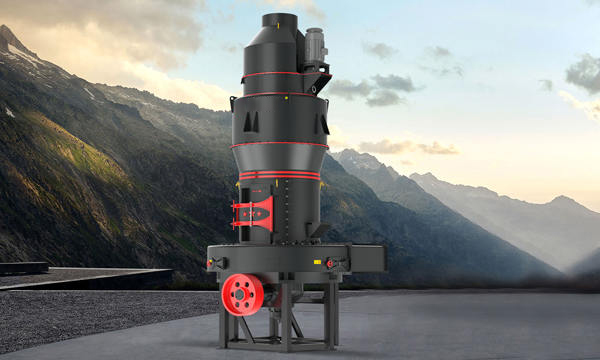

The whole machine structure is composed of the main machine (Raymond mill), analyzer, pipeline device, blower, jaw crusher, bucket elevator, silo, electromagnetic vibrating feeder, power distribution cabinet, etc.

After the large block materials are crushed to the required particle size by the jaw crusher, the materials are sent to the silo by the elevator, and then the materials are evenly sent to the main machine grinding chamber for grinding by the vibrating feeder. The ground powder is taken away by the airflow of the fan, and is classified by the analyzer. The powder that meets the fineness enters the large cyclone collector with the airflow, is separated and collected, and then discharged through the powder outlet pipe as the finished powder. The airflow is then sucked into the blower through the return air duct at the upper end of the large cyclone collector.
