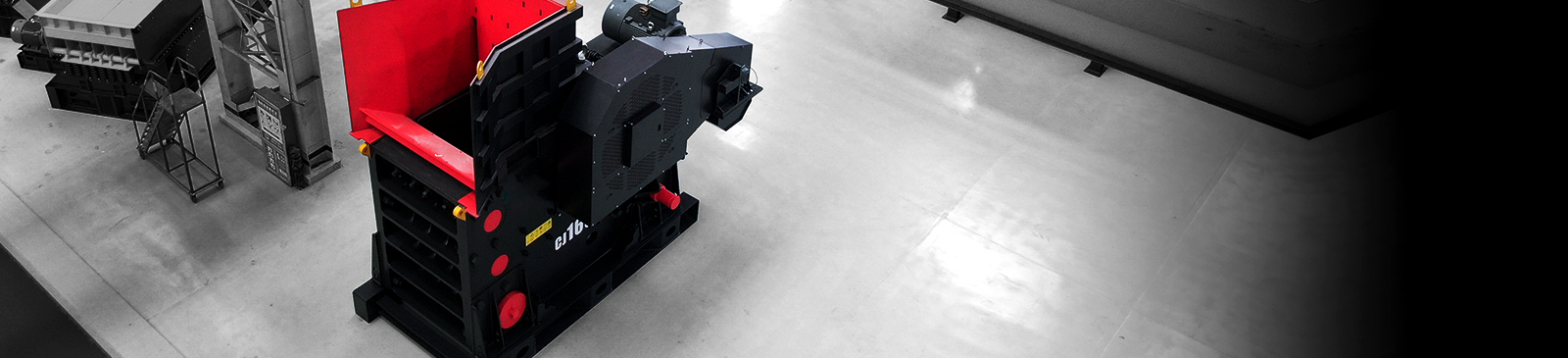

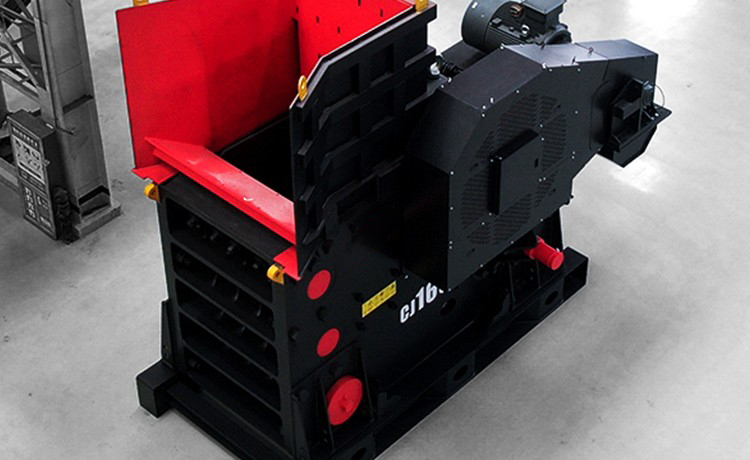

The CJ series jaw crusher is with excellent performance introduced by Henan Fote Heavy Machinery Co.,Ltd. based on the needs of customers. Different from the traditional jaw crusher, there are significant improvements in the crusher's motion parameters, structural forms, and adjustment methods.
The CJ series jaw crusher commonly used for primary or secondary crushing in the mining material crushing. It has less occupied space, larger crushing ratio and more stable operation. It has more advantages in transportation, installation, maintenance and adjustment. Particularly suitable for fixed crushing lines and mobile crushing plants.
Excellent feeding ability -The deep V cavity allows the material into the crushing cavity without any obstruction, thus ensuring the best feeding ability.
Reliable equipment operation- Greater fatigue resistance, higher reliability, and longer service life provide a good operating environment for the equipment.
High yield and big crushing ratio- Large crushing ratio and stable operation, which fully guarantees the high yield and high efficiency of the crushing operation.
The side plate of the frame, the front wall and the rear beam are connected by cylindrical pin positioning and high-strength bolts, which avoids the defects that the welding frame is easy to cause stress concentration;
The integral motor frame makes the installation more easier; reduces the installation space; Crusher and the integral motor bracket move synchronously, which improves the load on the V-belt.
The discharge port can be adjusted within a few minutes, which greatly reduces the labor intensity of the worker and downtime of the machine; the wedge working surface is quenched, which is more robust and durable.
Technical Specifications
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Maximum Feeding size（mm） | Capacity（t/h） |
| CJ96 | 480 | 105-390 |
| CJ106 | 560 | 150-500 |
| CJ120 | 700 | 175-610 |
| CJ125 | 760 | 270-831 |
| CJ150 | 960 | 340-880 |
| CJ160 | 960 | 430-1145 |
| CJ200 | 1200 | 630-1435 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
