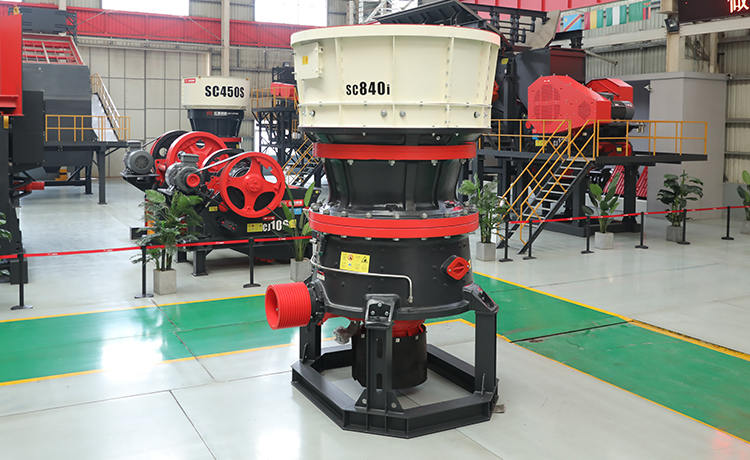

Introduction

SC series cone crusher is developed on the basis of absorbing the world's most advanced technology and integrating the company's many years of design experience. It integrates mechanical, hydraulic, electrical and intelligent control and remote control. It has the advantages of high efficiency, good grain shape, hydraulic adjustment, remote automatic control, choice of multiple crushing cavity types, and adjustment of eccentricity without changing any parts.

SSC series cone crusher can be used as the second-stage crushing equipment to match with jaw crusher or gyratory crusher, or as the third-stage or fourth-stage crushing equipment, which can meet most production needs of users.

request a quote e-mail

Advantages

The new crusher structure, optimized laminated crushing cavity type, intelligent automatic control system and innovative Internet control system make the SC(S) series single-cylinder hydraulic cone crusher.

  • Constant crushing chamber type

    In the whole lining wear life cycle, the discharge particle size and productivity remain basically unchanged.

  • Positive pressure dust proof system

    Effectively prevent dust and other sundries from entering the equipment and oil tank to avoid lubricating oil pollution.

  • Intelligent control system

    The human- machine interaction interface is easy to understand, easy to use and efficient, making the operation and maintenance simple, maximize productivity.

Completely new design of FTM

  •
	Liner

    Using super high alloy manganese steel (ZGMn18Cr2), Long service life, no need for packing, easy replacement.

  •
	Gear

    Gear Using spiral bevel gear design, High carrying capacity, stable power transmission and low noise.

  •
	Sliding bearing

    Sliding bearing The sliding bearing is made of lead bronze and special oil wedge design to prevent bearing damage.

Technical Specifications

SC Single Cylinder Cone Crusher Medium Crushing Series

Model Cavities Feeding Size (mm) Maximum Feeding Size (mm) Minimum Discharging Size (mm) Power (kw) Capacity(t/h)
SC100S C1 240 175 22 90 85-170
C2 200 160 19 70-130
SC160S C1 360 290 25 160 125-345
C2 300 240 22 108-305
SC250S C1 450 360 35 250 265-524
C2 400 320 29 225-448
SC315S C1 560 450 41 315 349-1050
C2 500 400 38 318-892
SC450S C1 600 480 44 450 498-1500
C2 480 385 41 454-1274

SC Single Cylinder Cone Crusher Fine Crushing Series

Model Cavities Feeding Size (mm) Maximum Feeding Size (mm) Minimum Discharging Size (mm) Power (kw) Capacity(t/h)
SC100 F1 150 120 10 90 45-135
F2 90 70 10 43-118
F3 50 40 6 25-40
SC160 F1 200 160 13 160 69-215
F2 115 90 10 57-184
F3 75 60 8 70-90
SC250 F1 240 190 16 250 116-396
F2 140 110 13 97-346
F3 70 55  9 90-251
SC315 F1 275 220 32 315 177-662
F2 215 170 29 209-643
F3 175 140 29 162-552
F4 85 70 19 175-325
SC560 F1 300 240 22 560 448-1512
F2 195 155 19 380-1373
F3 90 70 13 357-912
SC750 F1 370 295 25 750 394-2181
F2 300 240 19 342-2020
F3 230 185 16 267-1814
F4 120 95 13 248-1165
F5 85 70 10 185-1170

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

SC Single Cylinder Cone Crusher Medium Crushing Series

Model Cavities Feeding Size (mm) Capacity(t/h)
SC100S C1 240 85-170
C2 200 70-130
SC160S C1 360 125-345
C2 300 108-305
SC250S C1 450 265-524
C2 400 225-448
SC315S C1 560 349-1050
C2 500 318-892
SC450S C1 600 498-1500
C2 480 454-1274

SC Single Cylinder Cone Crusher Fine Crushing Series

Model Cavities Feeding Size (mm) Capacity(t/h)
SC100 F1 150 45-135
F2 90 43-118
F3 50 25-40
SC160 F1 200 69-215
F2 115 57-184
F3 75 70-90
SC250 F1 240 116-396
F2 140 97-346
F3 70 90-251
SC315 F1 275 177-662
F2 215 209-643
F3 175 162-552
F4 85 175-325
SC560 F1 300 448-1512
F2 195 380-1373
F3 90 357-912
SC750 F1 370 394-2181
F2 300 342-2020
F3 230 267-1814
F4 120 248-1165
F5 85 185-1170

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
