Introduction

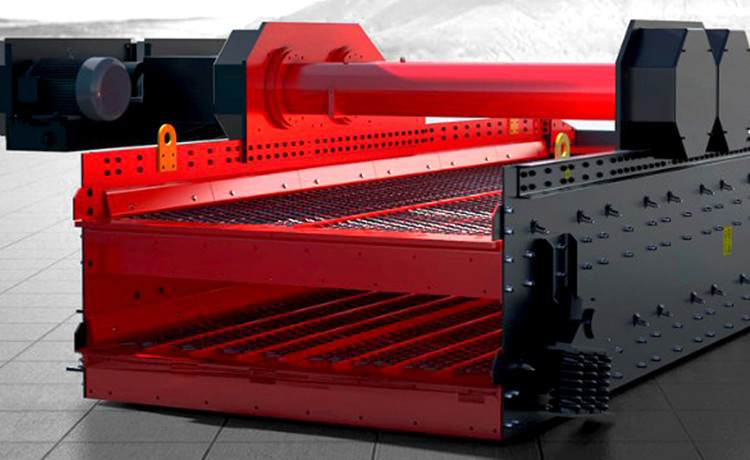

LS series linear screen is designed based on European technology and manufactured in China in strict accordance with European technical standards and process requirements. Its motion trajectory is a straight line or an elliptical shape close to a straight line, which takes into account the high screening efficiency of the linear vibration trajectory and the large processing capacity of the circular vibration trajectory, as well as its approximately horizontal installation method.

request a quote e-mail

Advantages

  • The linear trajectory produced by the dual- axis vibrator makes the equipment have a higher screening efficiency.

  • The maximum vibration intensity of 4.5G, the rod is not easy to jam.

  • Convenient adjustment of vibration parameters, better adapt to different site conditions.

  • The feed range of 500mm-1500mm is suitable for large impact and high load conditions.

  • By adjusting the gap between the grate bars and selecting the lower screen, the equipment can have a wide separation granularity level.

Completely new design of FTM

  •   Imported high wear-resistant rubber lining

    Imported high wear-resistant rubber lining

  •   Modular exciter structure

    Modular exciter structure

Technical Specifications

Model Screen mesh size
(mm)
Power (kw) Separation grain sizes
(mm)
Processing Capacity
(t/h)
Amplitude
(mm)
Vibration Intensity Maximum feeding size
(mm)
One layers Two layers Three layers
LS1550 1500×5000 2×11 2×11 2×15 2-100 70-300 5-16 5.0G 300
LS1860 1800×6000 2×11 2×15 2×22 2-100 90-400 5-16 5.0G 300
LS2160 2100×6000 2×11 2×15 2×22 2-100 100-450 5-16 5.0G 300
LS2460 2400×6000 2×15 2×22 2×30 2-100 110-500 5-16 5.0G 300
LS2770 2700×7000 2×30 2-100 130-600 5-16 5.0G 300
LS3060 3000×6000 2×30 2-100 140-650 5-16 5.0G 300
LS3070 3000×7000 2×30 2-100 140-700 5-16 5.0G 300

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Separation grain sizes
(mm)
Processing Capacity
(t/h)
Maximum feeding size
(mm)
LS1550 2-100 70-300 300
LS1860 2-100 90-400 300
LS2160 2-100 100-450 300
LS2460 2-100 110-500 300
LS2770 2-100 130-600 300
LS3060 2-100 140-650 300
LS3070 2-100 140-700 300

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
