Introduction

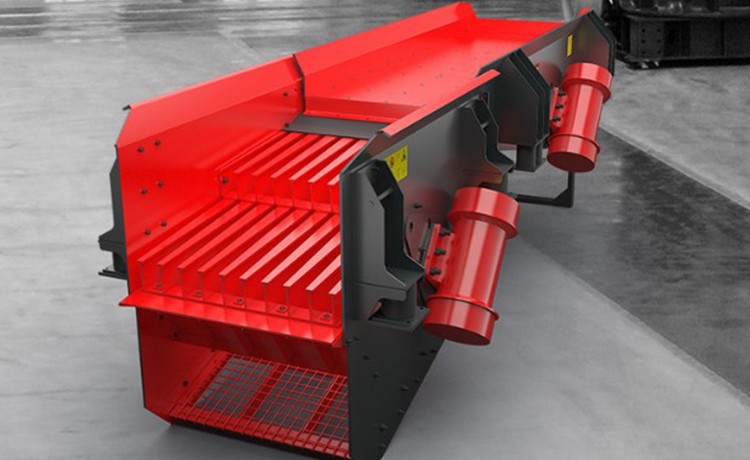

HST series feeding and pre-screening combination machine is composed of independent operation of plate feeder and grizzly screen, plate feeder precisely control the feeding amount, grizzly screen and feeder separate operation, not affected by the feeder frequency, can be set separately stroke size and speed, so as to provide better screening effect. It is widely used in quarry, mining, building materials, electric power, coal and chemical industries, suitable for high content of fine material feeding and pre-screening of raw materials.

request a quote e-mail

Advantages

  • Feeding and screening units operate independently, Flexible adjustment of frequency;

  • To solve the problem of raw material stickiness, and feeding with much soil content.

  • Reduce the coarse crushing load after pre-screening, Increase the capacity of the whole line.

Completely new design of FTM

  •
	  Flat feeder

    Flat feeder

  •
	  Bar screen for pre-treatment

    Bar screen for pre-treatment

Technical Specifications

Model Feeding part Screening part Feeding width
(mm)
Screen width
(mm)
Processing capacity
(t/h)
Maximum feed size
(mm)
Motor power
(kw)
Rotating speed
(r/m)
Lower screen
(mm)
Labyrinth adjustment range
(mm)
HST0863 HST0841 HST0822 690 750 75-240 500 4x5.5 980 ≤40 40-110
HST1063 HST1040 HST1022 950 1020 90-300 600 4x5.5 980 ≤40 40-110
HST1263 HST1241 HST1222 1080 1150 120-400 750 4x7.5 980 ≤40 40-110
HST1363 HST1341 HST1322 1230 1300 165-550 850 4x7.5 980 ≤40 40-110
HST1673H HST1541H HST1622H 1500 1600 240-800 950 4x11.5 980 ≤40 40-125

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Feeding width
(mm)
Screen width
(mm)
Processing capacity
(t/h)
HST0863 690 750 75-240
HST1063 950 1020 90-300
HST1263 1080 1150 120-400
HST1363 1230 1300 165-550
HST1673H 1500 1600 240-800

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
