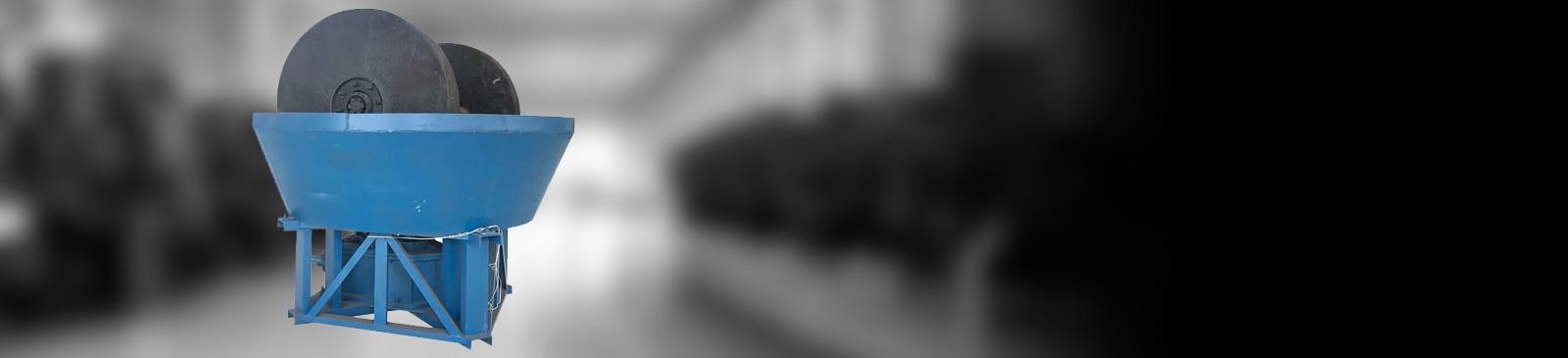

The wet pan mill can be used for the grinding operations of gold, silver, copper, iron, molybdenum, quartz and other ores, especially in the grinding work of various vein gold mines, rock gold mines, placer gold mines, and associated gold mines. A wide range of minerals (natural gold, fractured gold, coated gold, fine-grained gold, fine-grained gold) can achieve good grinding indicators, providing favorable conditions for subsequent gold selection operations.
The motor is driven by the V-belt to the gearbox, and then the gearbox drives the rollers, so that the rollers rotate in a clockwise direction. When the raw materials in the basin rotate with the rollers, they follow the rotation of the rollers, so as to achieve the purpose of uniform mixing. At the same time, raw materials are stirred-rolled-crushed-rolled repeatedly with the friction of rollers and the pan to achieve a certain degree of fineness and then discharged with water to achieve the purpose of beneficiation.
Wet pan mill is used for the recovery of tailings in the mineral ore process, without the loss of mineral powder, so that effective resources can be fully utilized. If you are interested it, please contact us online.
Large crushing ratio; the proportion of 80-200 mesh products can reach more than 95%.
The machine is assembled with special casting parts and it has precision design which makes the machine to be durable.
Wet pan mill has simple structure and less wearing parts thus easy to do maintenance and request low investment.
Gold Ore Wet Pan Mill in Zimbabwe
Gold Wet Pan Mill in South Africa
Gold Stone Wet Pan Mill in Tanzania
Technical Specifications
| Model | Roller dia. (mm) | Pan dia. (mm) | Daily capacity(t) | power (kw) |
| 1100 | 1100 | 1780 | 10 | 4P5.5 |
| 1200 | 1200 | 1780 | 15 | 6P7.5 |
| 1400 | 1400 | 1880 | 25 | 6P15 |
| 1500 | 1500 | 1880 | 35 | 6P22 |
| 1600 | 1600 | 1880 | 45 | 6P30 |
